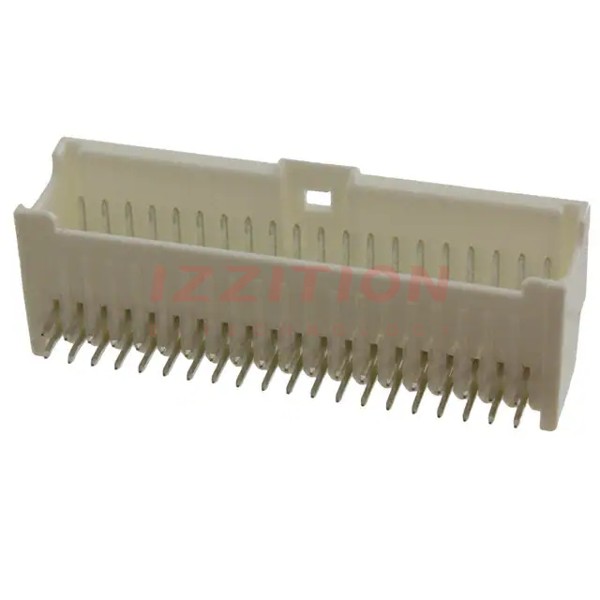

Molex-0559594030 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	40
Number of Rows:	2
Row Spacing - Mating:	0.197" (5.00mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	-
Insulation Height:	0.461" (11.70mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0559594030
