Molex-0559321010 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	10
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.144" (3.66mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	0.360" (9.15mm)
Insulation Height:	0.384" (9.75mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

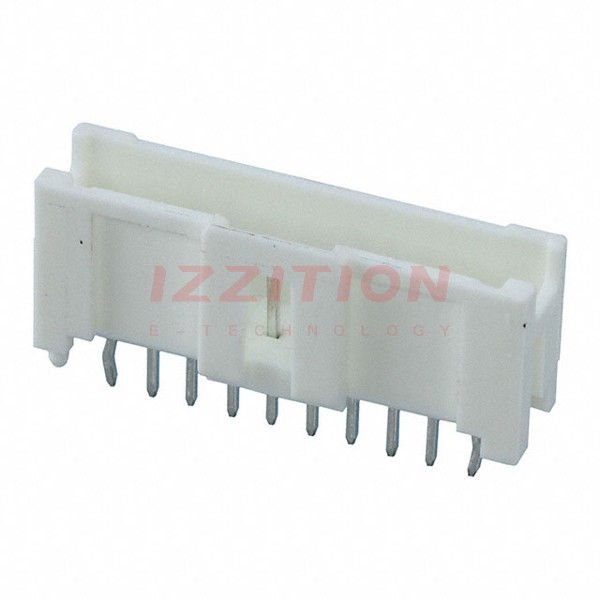

Molex 0559321010
