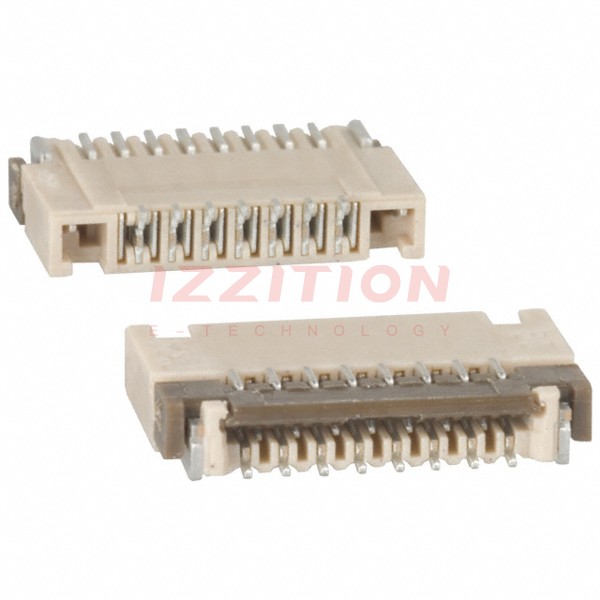

Molex 0548091598

Manufacturer No:
0548091598
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0548091598 Datasheet
ECAD Model:
-
Description:
CONN FPC BOTTOM 15POS 0.30MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:15
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.051" (1.30mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA46), Nylon 4/6
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
54

Please send RFQ , we will respond immediately.
