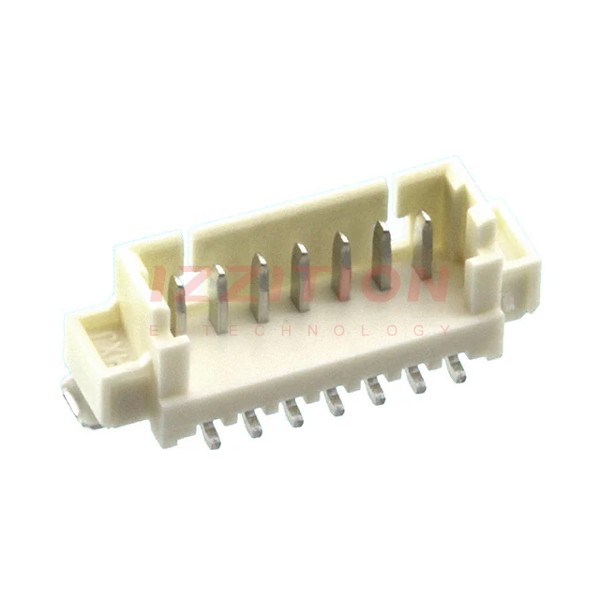

Molex 0533980771

Manufacturer No:
0533980771
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0533980771 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 7POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.185" (4.70mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$0.94
552

Please send RFQ , we will respond immediately.
