Molex-0533980490 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.185" (4.70mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	-
Insulation Material:	-
Features:	Solder Retention
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

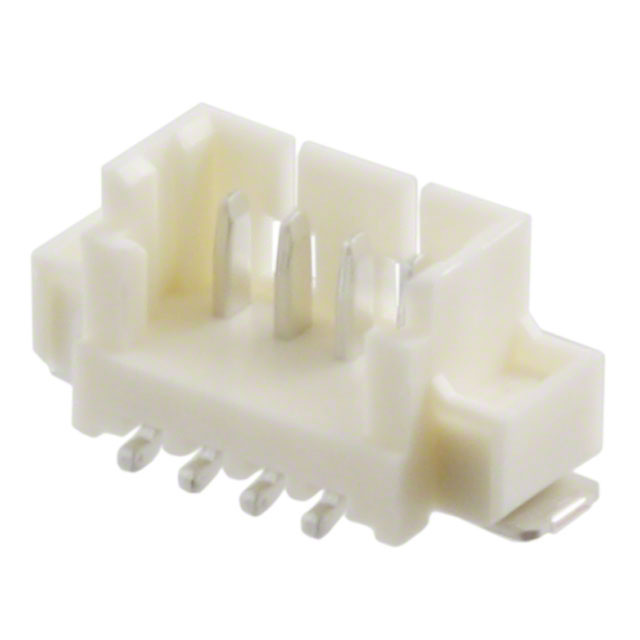

Molex 0533980490
