Molex-0532900410 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.130" (3.30mm)
Contact Length - Post:	0.126" (3.20mm)
Overall Contact Length:	0.335" (8.51mm)
Insulation Height:	0.236" (6.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	-
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	-
Current Rating (Amps):	-
Voltage Rating:	-

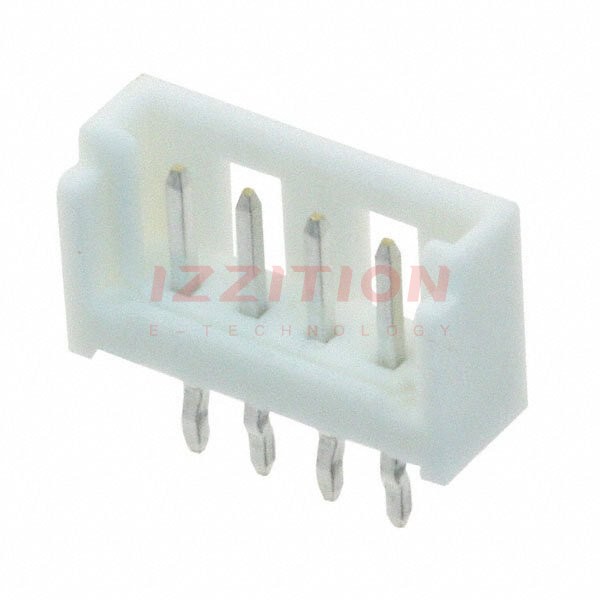

Molex 0532900410
