0532617004
  • Share:

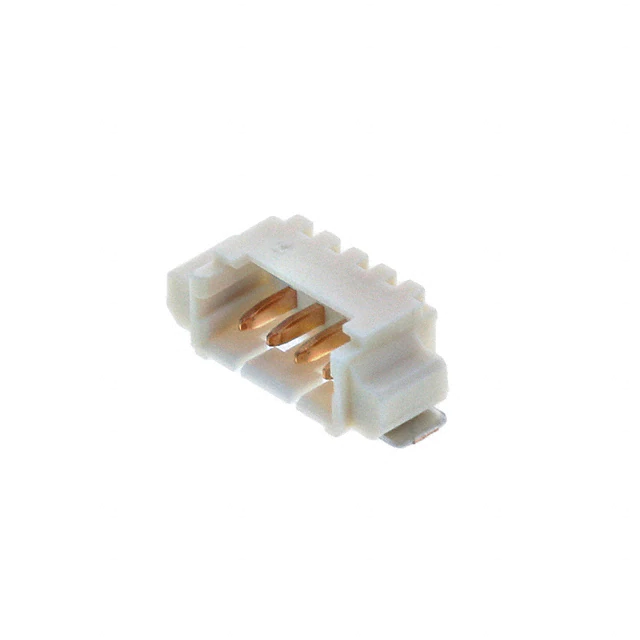

Molex 0532617004

Manufacturer No:
0532617004
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0532617004 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 4POS 1.25MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.134" (3.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A per Contact
Voltage Rating:125VAC/DC
0 Remaining View Similar

In Stock

$1.50
398

Please send RFQ , we will respond immediately.
