0530471460
  • Share:

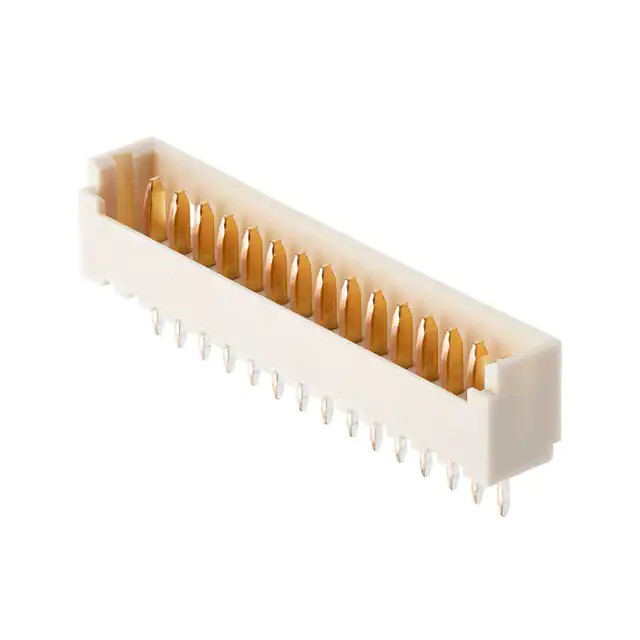

Molex 0530471460

Manufacturer No:
0530471460
Manufacturer:
Molex
Package:
Tray
Datasheet:
0530471460 Datasheet
ECAD Model:
-
Description:
HDR VERT 14 CIRC 1.25 DIP TH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.049" (1.25mm)
Number of Positions:14
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.089" (2.25mm)
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.165" (4.20mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-40°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:125VAC/DC
0 Remaining View Similar

In Stock

$1.63
342

Please send RFQ , we will respond immediately.
