Molex-0530470460 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.049" (1.25mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Detent Lock
Contact Length - Mating:	0.089" (2.25mm)
Contact Length - Post:	0.091" (2.30mm)
Overall Contact Length:	-
Insulation Height:	0.165" (4.20mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Tin
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	-
Operating Temperature:	-40°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	Varies by Wire Gauge
Voltage Rating:	125VAC/DC

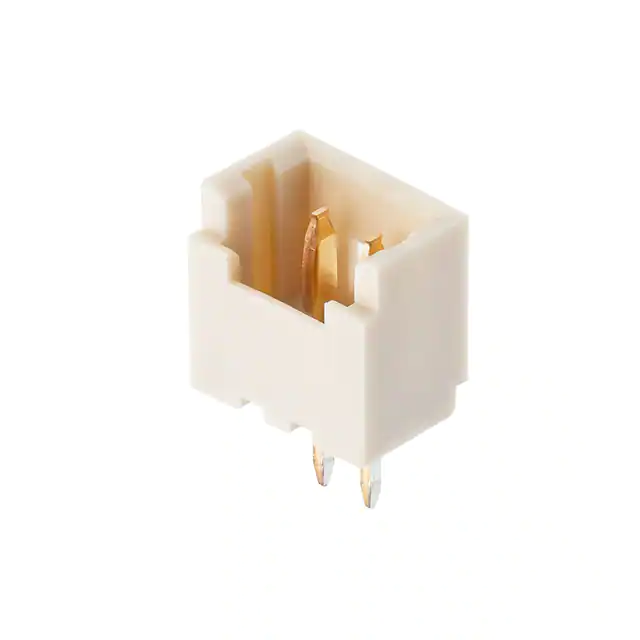

Molex 0530470460
