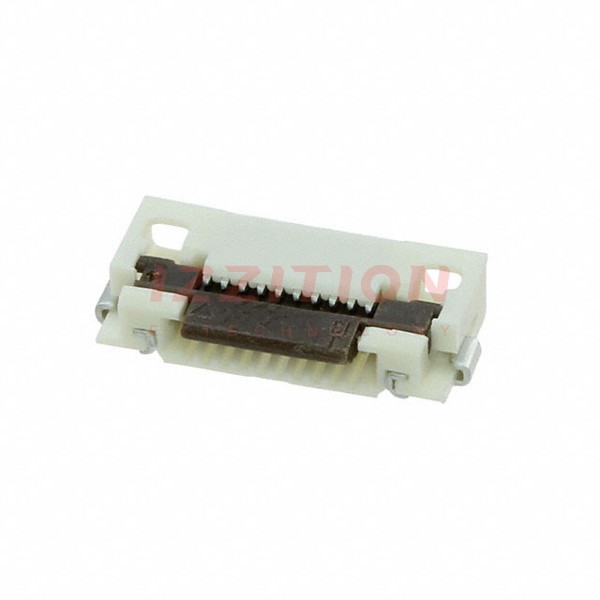

Molex 0528921033

Manufacturer No:
0528921033
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0528921033 Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 10POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:10
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Flip Lock
Cable End Type:Straight, Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$0.83
1,043

Please send RFQ , we will respond immediately.
