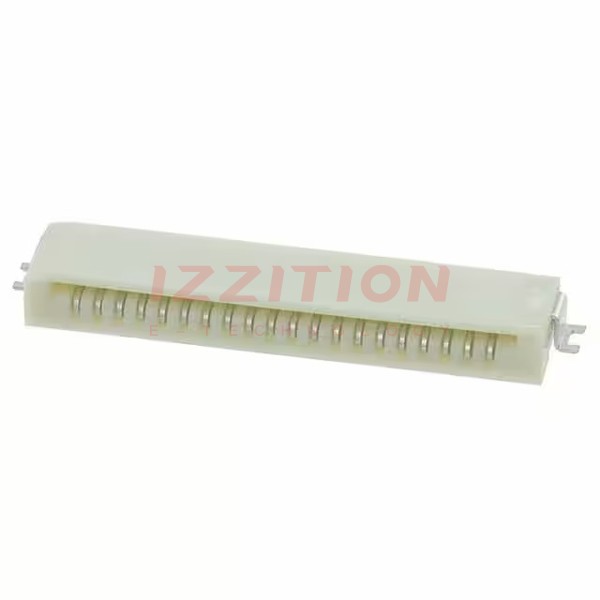

Molex 0528522070

Manufacturer No:
0528522070
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0528522070 Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 20POS 1.00MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:20
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.122" (3.10mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyphenylene Sulfide (PPS)
Actuator Material:-
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$1.57
406

Please send RFQ , we will respond immediately.
