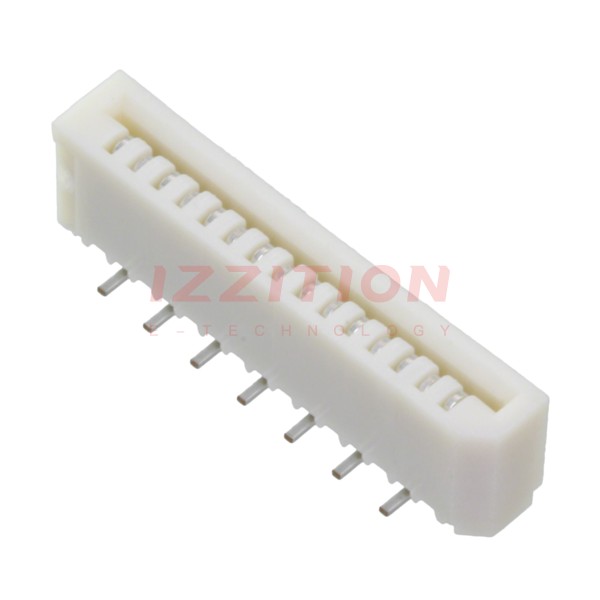

Molex 0528081570

Manufacturer No:
0528081570
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0528081570 Datasheet
ECAD Model:
-
Description:
CONN FPC VERT 15POS 1.00MM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:15
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.199" (5.05mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyphenylene Sulfide (PPS)
Actuator Material:-
Features:-
Voltage Rating:125V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$0.44
2,078

Please send RFQ , we will respond immediately.
