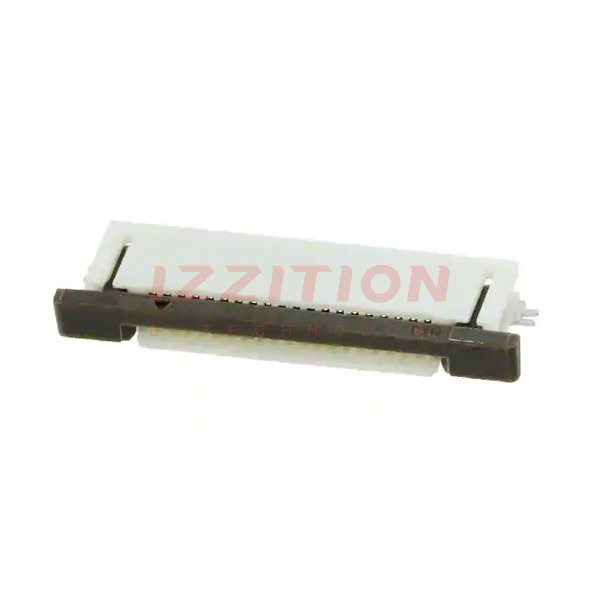

Molex 0527462071

Manufacturer No:
0527462071
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0527462071 Datasheet
ECAD Model:
-
Description:
CONN FFC BOTTOM 20POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:20
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Straight, Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$1.98
358

Please send RFQ , we will respond immediately.
