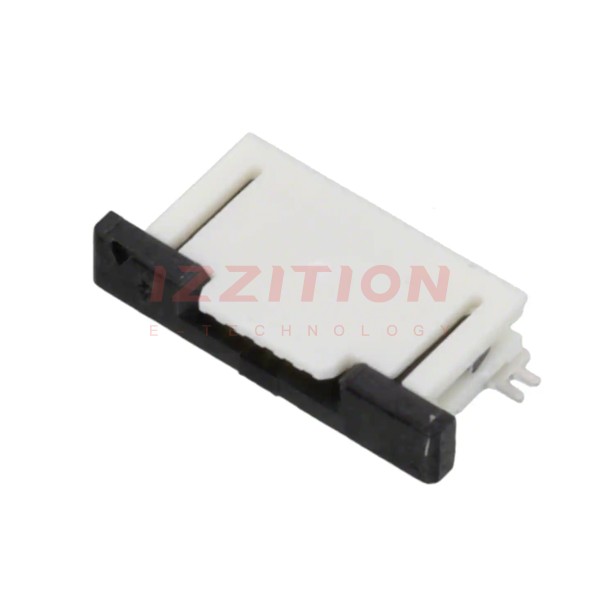

Molex 0527450697

Manufacturer No:
0527450697
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0527450697 Datasheet
ECAD Model:
-
Description:
CONN FFC TOP 6POS 0.50MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:-
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:6
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material:-
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:-
0 Remaining View Similar

In Stock

$1.02
75

Please send RFQ , we will respond immediately.
