Molex 0526102671

Manufacturer No:
0526102671
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0526102671 Datasheet
ECAD Model:
-
Description:

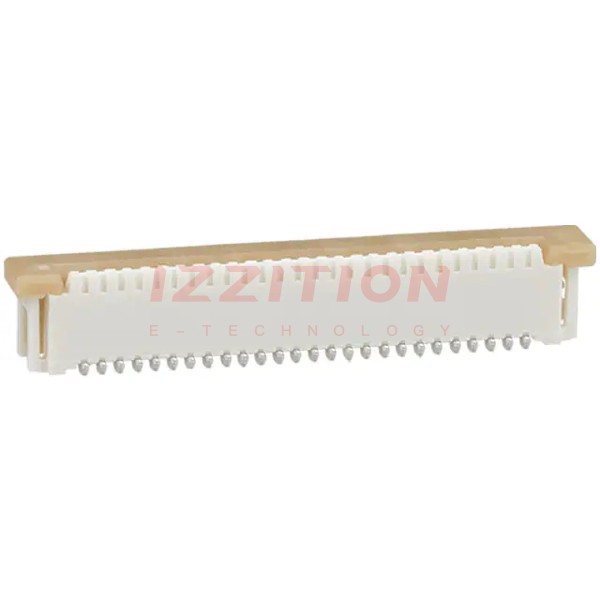

CONN FFC VERT 26POS 1.00MM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:-
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:26
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.226" (5.74mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
275

Please send RFQ , we will respond immediately.
