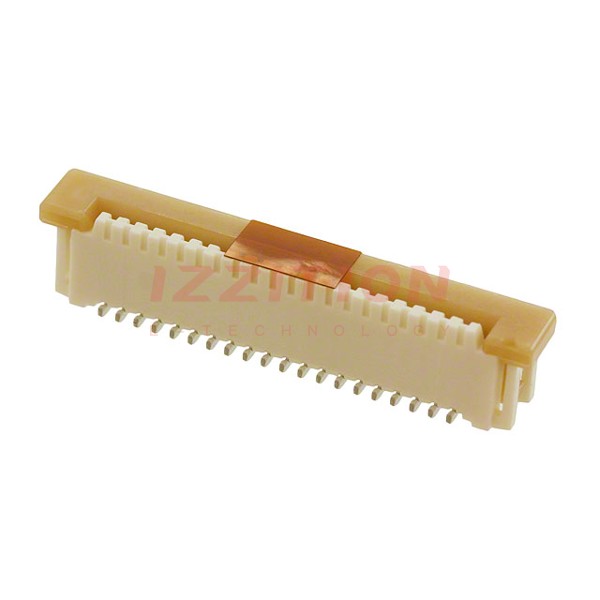

Molex 0526102075

Manufacturer No:
0526102075
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0526102075 Datasheet
ECAD Model:
-
Description:
CONN FPC VERT 20POS 1.00MM SMD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:20
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.226" (5.74mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
540

Please send RFQ , we will respond immediately.
