Molex-0524372671 - FFC, FPC (Flat Flexible) Connectors Product Specifications and Latest Quotes

Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	26
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.079" (2.00mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight, Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 85°C
Material Flammability Rating:	UL94 V-0

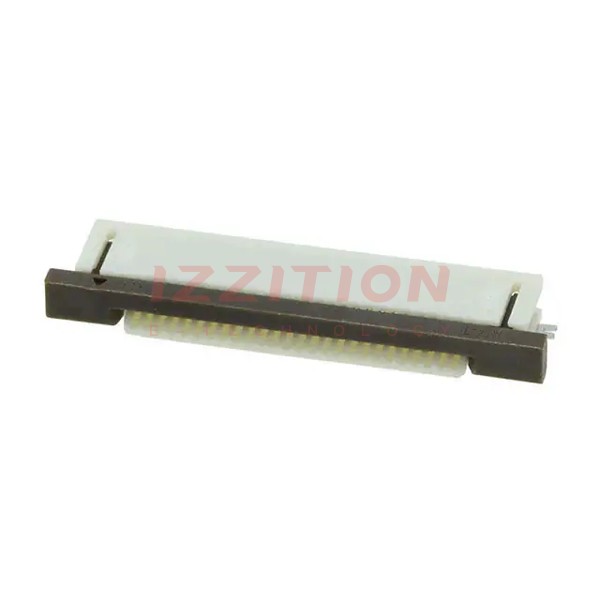

Molex 0524372671
