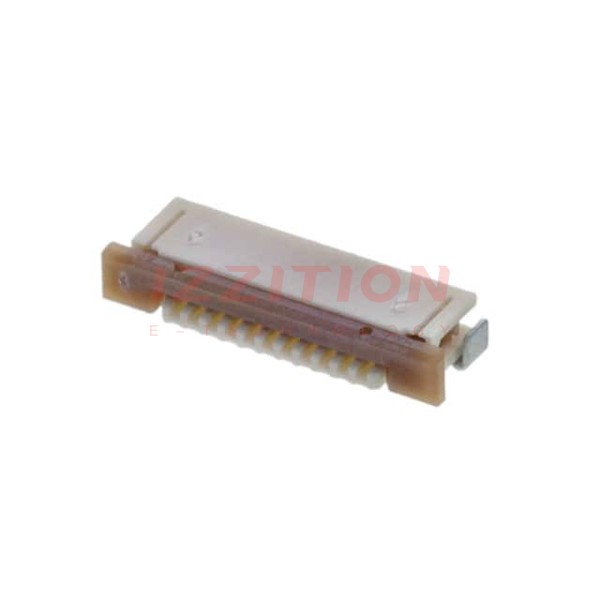

Molex 0522711169

Manufacturer No:
0522711169
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0522711169 Datasheet
ECAD Model:
-
Description:
10 FPCZIFSMTRABTMAU11CKTEMBSTPPK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:11
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.118" (3.00mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphorus Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Top Load
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

$1.56
64

Please send RFQ , we will respond immediately.
