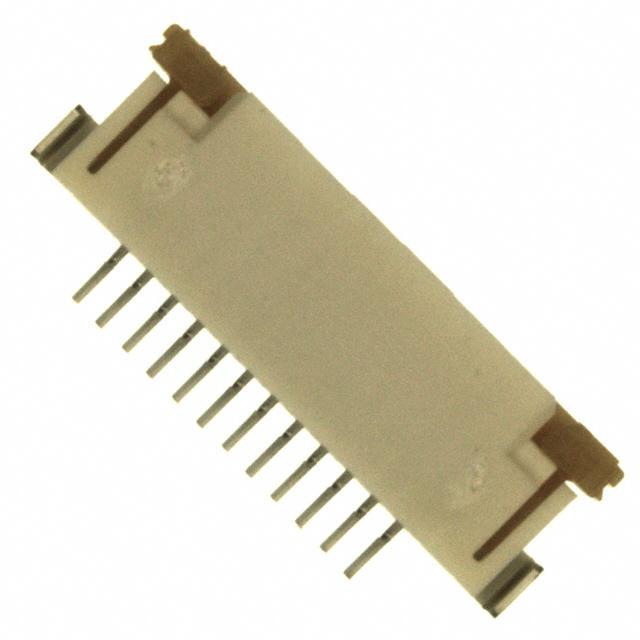

Molex 0522071285

Manufacturer No:
0522071285
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0522071285 Datasheet
ECAD Model:
-
Description:
CONN FFC FPC TOP 12POS 1MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:12
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
437

Please send RFQ , we will respond immediately.
