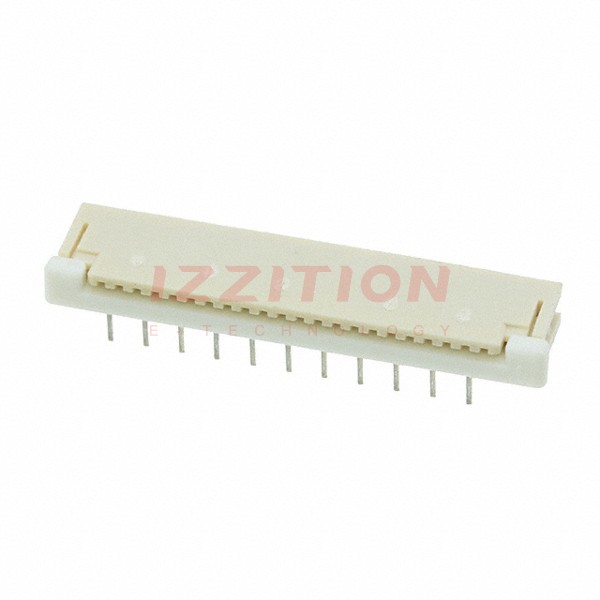

Molex 0520892219

Manufacturer No:
0520892219
Manufacturer:
Molex
Package:
Tray
Datasheet:
0520892219 Datasheet
ECAD Model:
-
Description:
CONN FPC TOP 22POS 1.00MM R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FPC
Mounting Type:Through Hole, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:22
Pitch:0.039" (1.00mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.30mm
Height Above Board:0.118" (3.00mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA66), Nylon 6/6
Actuator Material:Polyester
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
516

Please send RFQ , we will respond immediately.
