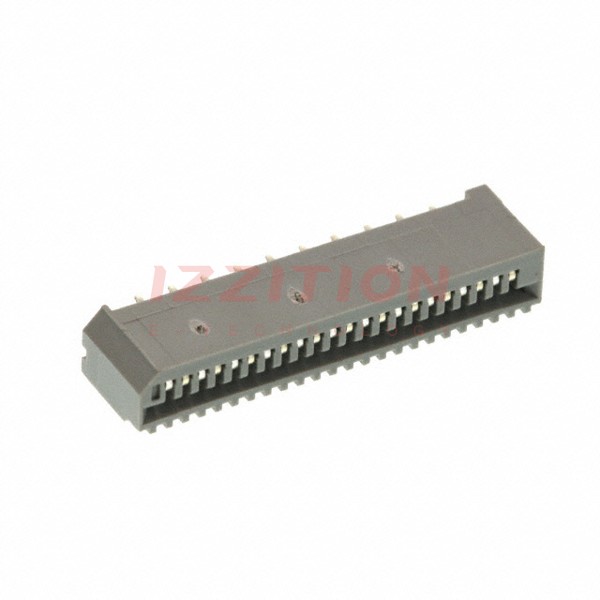

Molex 0520452245

Manufacturer No:
0520452245
Manufacturer:
Molex
Package:
Tray
Datasheet:
0520452245 Datasheet
ECAD Model:
-
Description:
CONN FFC VERT 22POS 1.25MM PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Flat Flex Type:FFC, FPC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:22
Pitch:0.049" (1.25mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.30mm
Height Above Board:0.315" (8.00mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polybutylene Terephthalate (PBT), Polyester
Actuator Material:-
Features:-
Voltage Rating:200V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
0 Remaining View Similar

In Stock

-
15

Please send RFQ , we will respond immediately.
