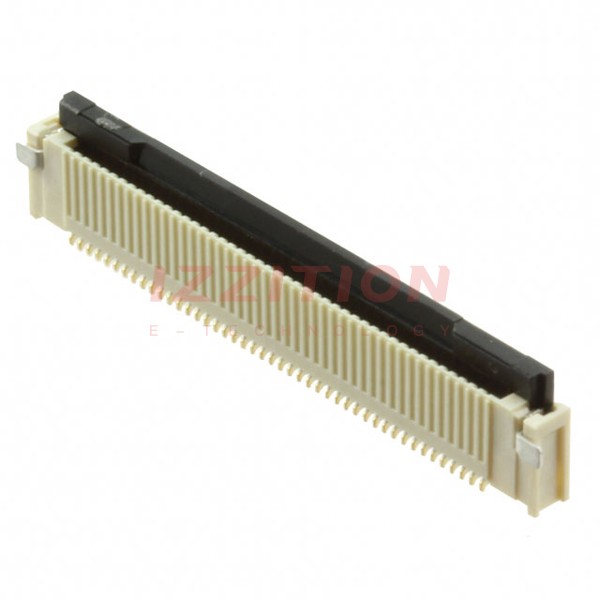

Molex-0513744573 - FFC, FPC (Flat Flexible) Connectors Product Specifications and Latest Quotes

Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	45
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.159" (4.04mm)
Locking Feature:	Flip Lock
Cable End Type:	Straight, Tapered
Contact Material:	Copper Alloy
Contact Finish:	Tin Bismuth
Housing Material:	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:	Polyphenylene Sulfide (PPS), Glass Filled
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-25°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Molex 0513744573
