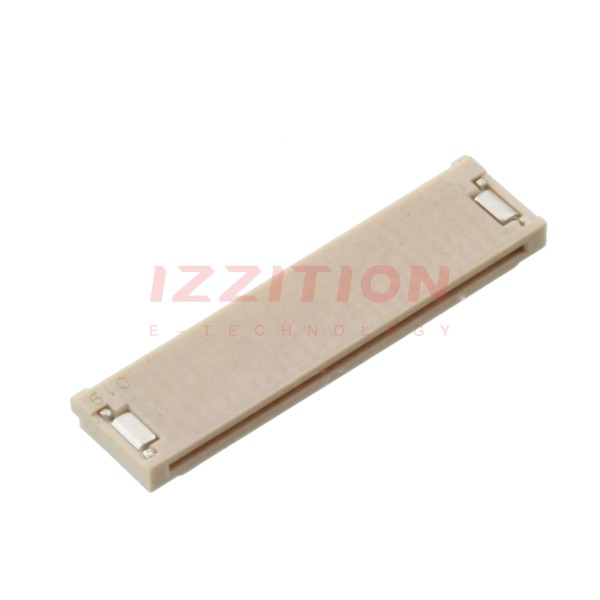

0512812694 Image
×
Favorite
Compare
Add to RFQ
Share:
Molex 0512812694
Manufacturer No:
0512812694
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0512812694 Datasheet
ECAD Model:
-
Description:
CONN FFC FPC 26POS 0.50MM R/A
Delivery:
Payment:
Product Attributes
Flat Flex Type:
FFC, FPC
Mounting Type:
Surface Mount, Right Angle
Connector/Contact Type:
Contacts, Top and Bottom
Number of Positions:
26
Pitch:
0.020" (0.50mm)
Termination:
Solder
FFC, FCB Thickness:
0.30mm
Height Above Board:
0.047" (1.20mm)
Locking Feature:
-
Cable End Type:
Straight, Tapered
Contact Material:
Phosphor Bronze
Contact Finish:
Gold
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:
-
Features:
Solder Retention
Voltage Rating:
50V
Operating Temperature:
-20°C ~ 85°C
Material Flammability Rating:
UL94 V-0
0
Remaining
View Similar
In Stock
UnitPrice:
$1.56
Quantity:
196
