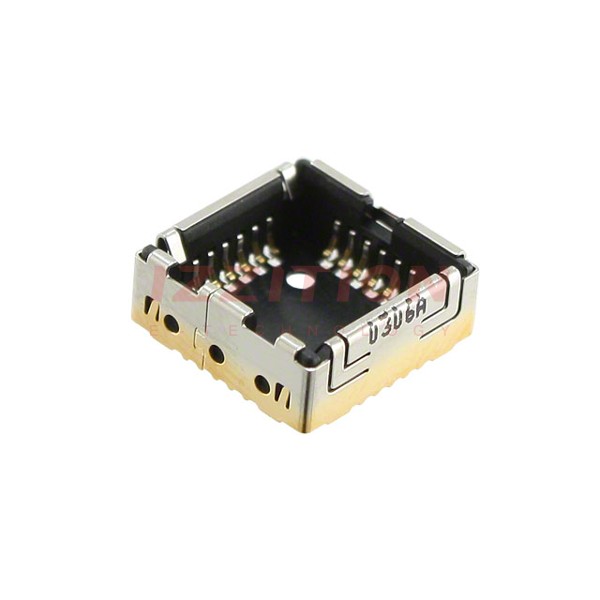

Molex-0473370001 - Sockets for ICs, Transistors Product Specifications and Latest Quotes

Type:	Camera Socket
Number of Positions or Pins (Grid):	24 (4 x 6)
Pitch - Mating:	0.035" (0.90mm)
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	12.0µin (0.30µm)
Contact Material - Mating:	Copper Alloy
Mounting Type:	Surface Mount
Features:	Open Frame
Termination:	Solder
Pitch - Post:	0.035" (0.90mm)
Contact Finish - Post:	Gold
Contact Finish Thickness - Post:	Flash
Contact Material - Post:	Copper Alloy
Housing Material:	Polyamide (PA), Nylon
Operating Temperature:	-55°C ~ 85°C

Molex 0473370001
