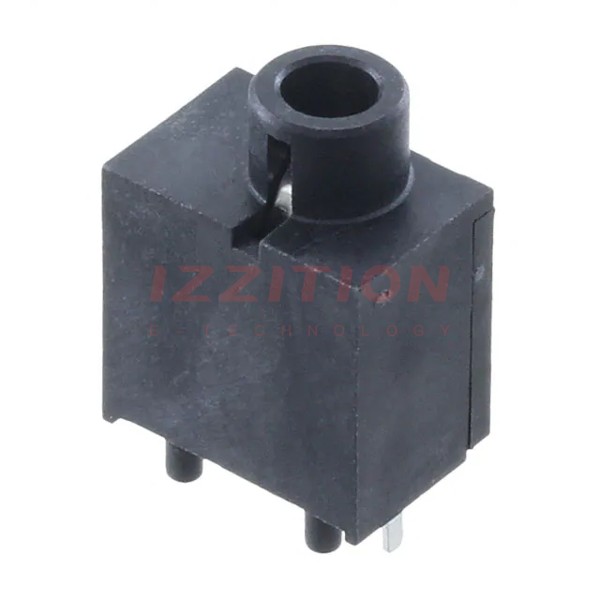

Molex 0472570001

Manufacturer No:
0472570001
Manufacturer:
Molex
Package:
Tube
Datasheet:
0472570001 Datasheet
ECAD Model:
-
Description:
CONN JACK STEREO 3.5MM PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Phone Jack
Gender:Female
Signal Lines:Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter:3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter:0.140" (3.56mm)
Number of Positions/Contacts:3 Conductors, 4 Contacts
Internal Switch(s):Single Switch
Mounting Type:Through Hole
Termination:Solder
Shielding:Unshielded
Features:Board Guide
Insulation Color:-
Operating Temperature:-40°C ~ 85°C
0 Remaining View Similar

In Stock

$1.48
230

Please send RFQ , we will respond immediately.
