Molex-0462070208 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	8
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.207" (5.26mm)
Overall Contact Length:	-
Insulation Height:	0.535" (13.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

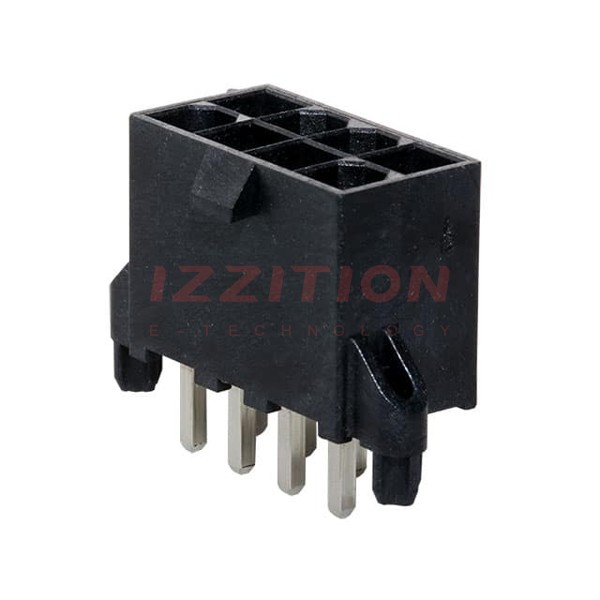

Molex 0462070208
