Molex-0448120004 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle, Bottom or Top Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	4
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	200.0µin (5.08µm)
Insulation Color:	Black
Insulation Height:	0.177" (4.50mm)
Contact Length - Post:	0.136" (3.46mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	250VAC, 176VDC

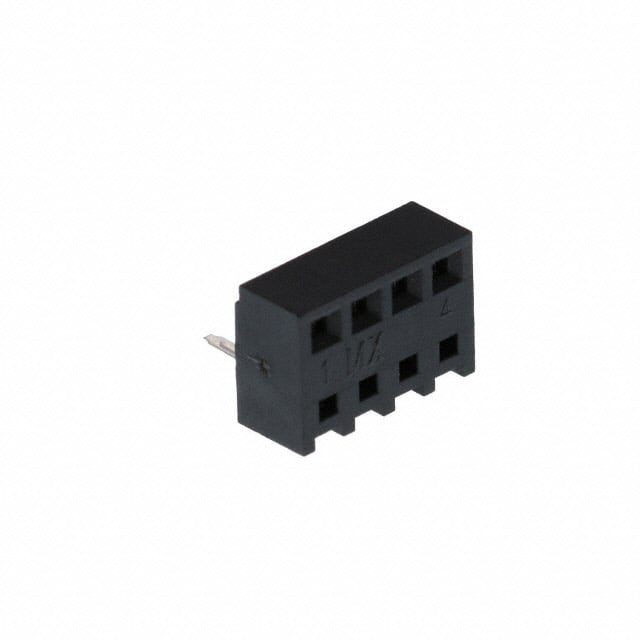

Molex 0448120004
