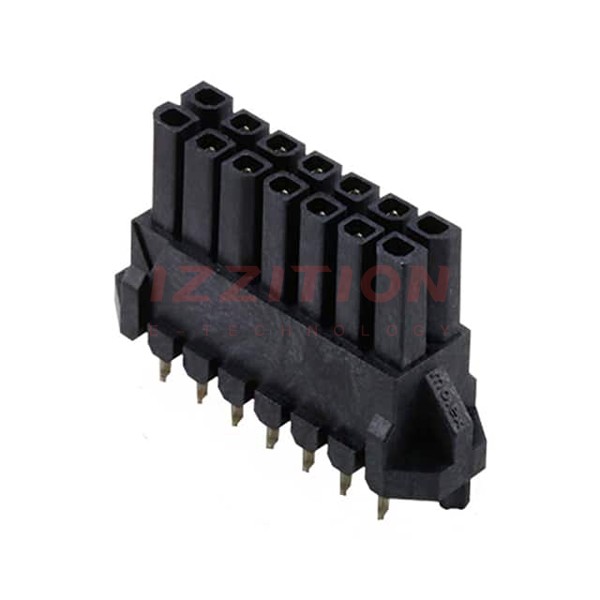

Molex 0447691401

Manufacturer No:
0447691401
Manufacturer:
Molex
Package:
Tray
Datasheet:
0447691401 Datasheet
ECAD Model:
-
Description:
CONN RCPT 14POS 0.118 TIN PCB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:14
Number of Positions Loaded:All
Pitch - Mating:0.118" (3.00mm)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:Black
Insulation Height:0.535" (13.60mm)
Contact Length - Post:0.134" (3.40mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:16.86mm
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):5A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$3.42
10

Please send RFQ , we will respond immediately.
