Molex-0447691201 - Rectangular Connectors - Headers, Receptacles, Female Sockets Product Specifications and Latest Quotes

Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.118" (3.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.118" (3.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Insulation Color:	Black
Insulation Height:	0.535" (13.60mm)
Contact Length - Post:	0.134" (3.40mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	16.86mm
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	5A
Voltage Rating:	250VAC

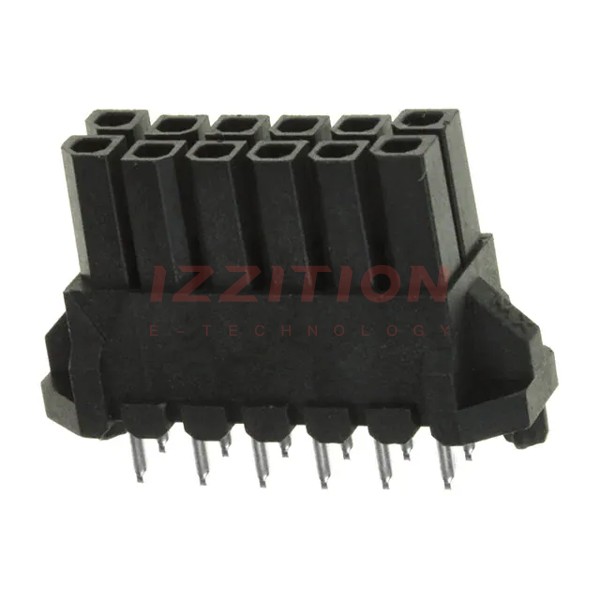

Molex 0447691201
