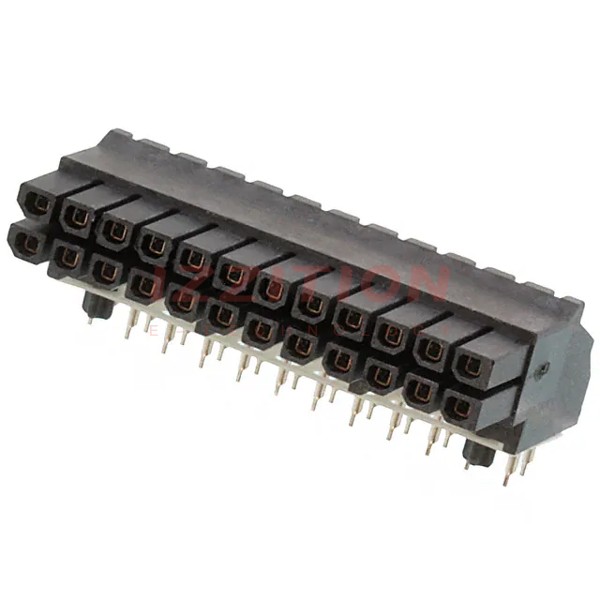

Molex 0447642401

Manufacturer No:
0447642401
Manufacturer:
Molex
Package:
Tray
Datasheet:
0447642401 Datasheet
ECAD Model:
-
Description:
CONN RCPT 24P 0.118 TIN PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:24
Number of Positions Loaded:All
Pitch - Mating:0.118" (3.00mm)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:40.0µin (1.02µm)
Insulation Color:Black
Insulation Height:0.402" (10.20mm)
Contact Length - Post:0.155" (3.94mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):5A
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$9.66
73

Please send RFQ , we will respond immediately.
