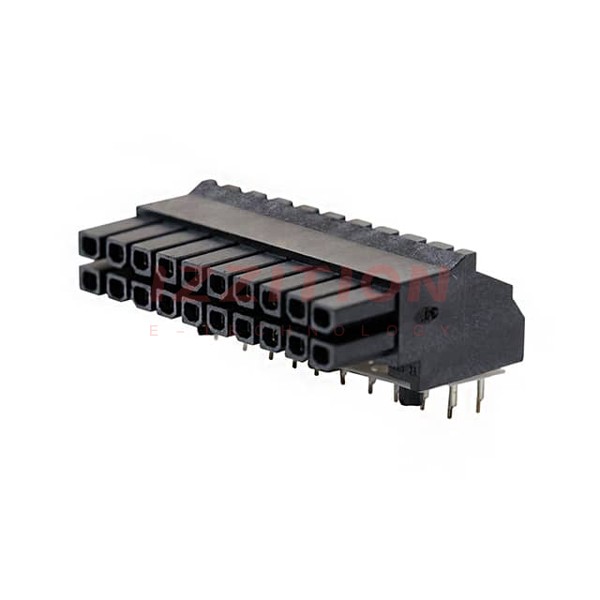

Molex 0447642003

Manufacturer No:
0447642003
Manufacturer:
Molex
Package:
Tray
Datasheet:
0447642003 Datasheet
ECAD Model:
-
Description:
CONN RCPT 20P 0.118 GOLD PCB R/A
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.118" (3.00mm)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.402" (10.20mm)
Contact Length - Post:0.155" (3.94mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):5A
Voltage Rating:600VAC
0 Remaining View Similar

In Stock

$7.44
35

Please send RFQ , we will respond immediately.
