0444281605
  • Share:

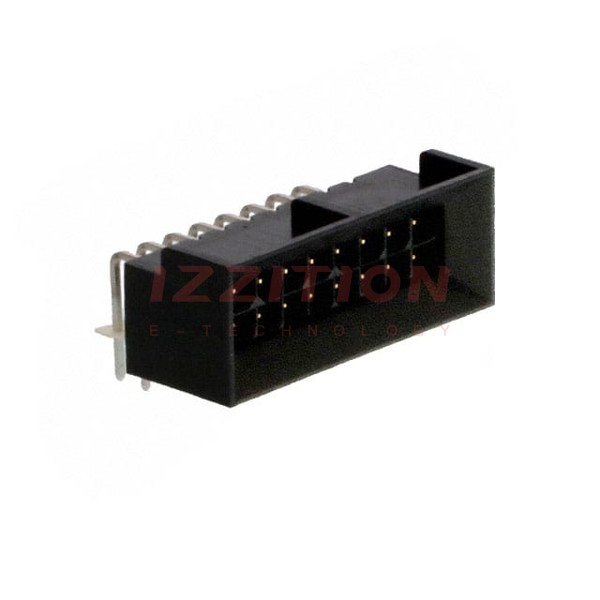

Molex 0444281605

Manufacturer No:
0444281605
Manufacturer:
Molex
Package:
Tray
Datasheet:
0444281605 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 16POS 3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.469" (11.90mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$7.91
66

Please send RFQ , we will respond immediately.
