Molex-0438100059 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.165" (4.20mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.165" (4.20mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.123" (3.12mm)
Overall Contact Length:	-
Insulation Height:	0.591" (15.00mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	30.0µin (0.76µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polyamide (PA46), Nylon 4/6, Glass Filled
Features:	Board Lock
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

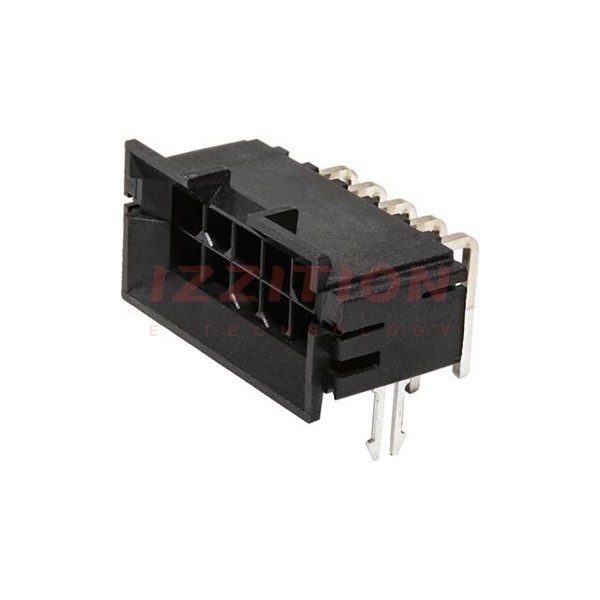

Molex 0438100059
