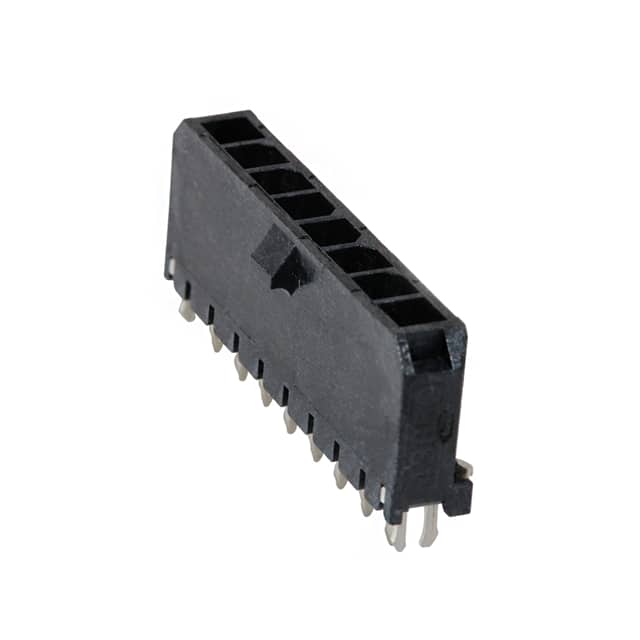

Molex-0436500822 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.118" (3.00mm)
Number of Positions:	8
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.390" (9.91mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Liquid Crystal Polymer (LCP), Glass Filled
Features:	Board Lock
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0436500822
