Molex-0432550067 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.250" (6.35mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	-
Contact Length - Post:	0.169" (4.30mm)
Overall Contact Length:	-
Insulation Height:	0.550" (13.97mm)
Contact Shape:	Circular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	137.8µin (3.50µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Polybutylene Terephthalate (PBT)
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	-

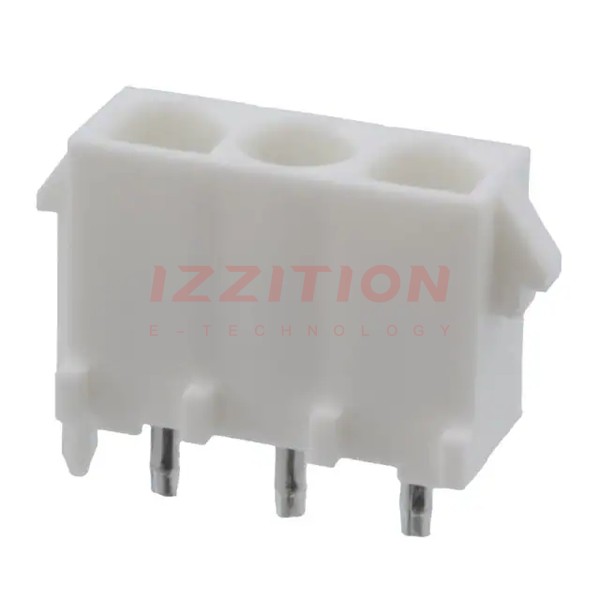

Molex 0432550067
