0430450817
  • Share:

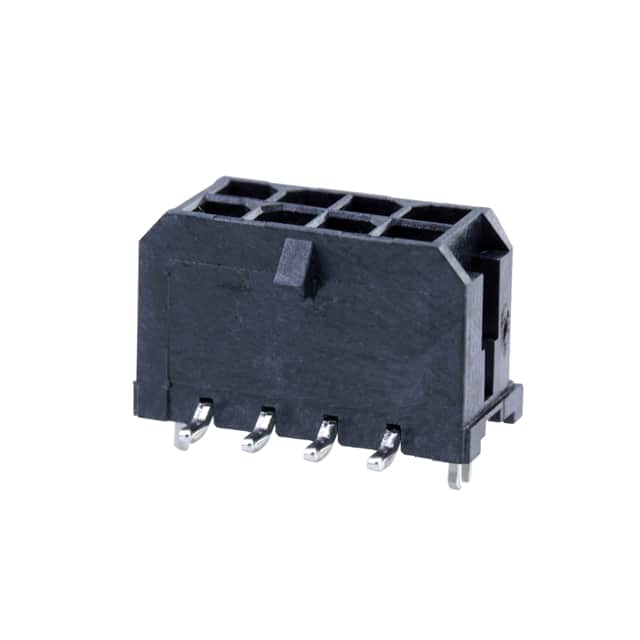

Molex 0430450817

Manufacturer No:
0430450817
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0430450817 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD 8POS 3MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.118" (3.00mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.390" (9.91mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Board Lock
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):8A
Voltage Rating:600V
0 Remaining View Similar

In Stock

$3.11
37

Please send RFQ , we will respond immediately.
