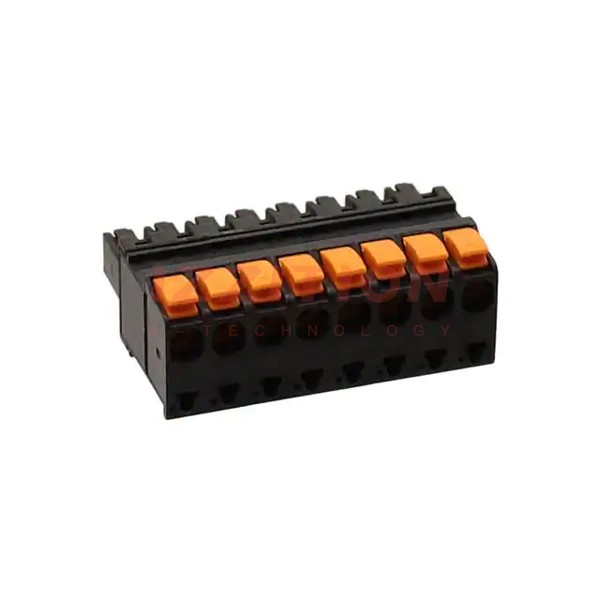

Molex-0397700004 - Terminal Blocks - Headers, Plugs and Sockets Product Specifications and Latest Quotes

Type:	Plug, Female Sockets
Number of Positions:	8
Positions Per Level:	8
Number of Levels:	1
Pitch:	0.150" (3.81mm)
Header Orientation:	-
Plug Wire Entry:	180°
Termination Style:	Screwless - Leg Spring, Push-In Spring
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	-
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	14-30 AWG
Wire Gauge or Range - mm²:	-
Color:	Black
Operating Temperature:	-40°C ~ 110°C
Contact Mating Finish:	-
Features:	-

Molex 0397700004
