0395321004
  • Share:

Molex 0395321004

Manufacturer No:
0395321004
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0395321004 Datasheet
ECAD Model:
-
Description:

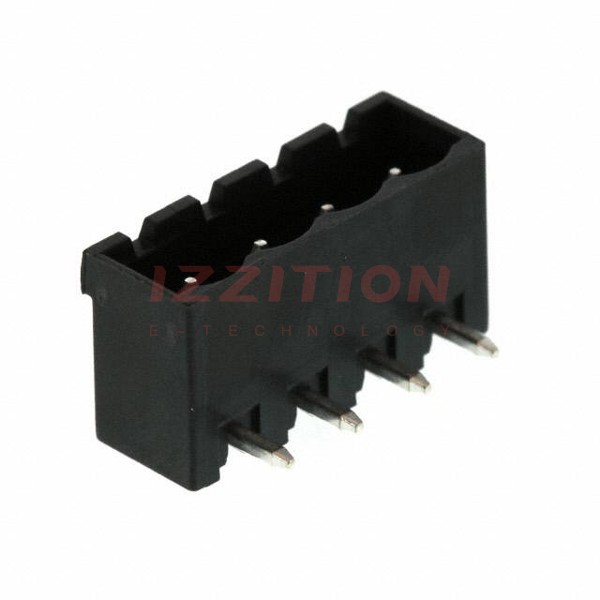

TERM BLOCK HDR 4POS 90DEG 5.08MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:4
Positions Per Level:4
Number of Levels:1
Pitch:0.200" (5.08mm)
Header Orientation:90°, Right Angle
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-40°C ~ 105°C
Contact Mating Finish:Tin
Features:-
0 Remaining View Similar

In Stock

$1.16
60

Please send RFQ , we will respond immediately.
