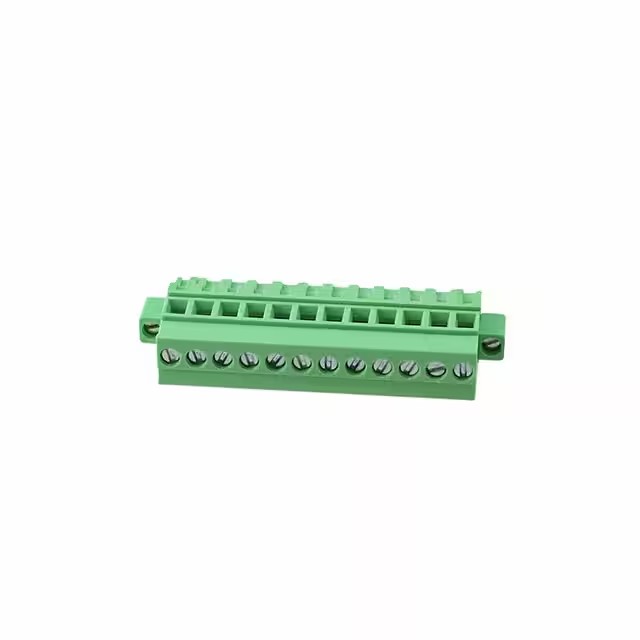

Molex-0395278012 - Terminal Blocks - Headers, Plugs and Sockets Product Specifications and Latest Quotes

Type:	Plug, Female Sockets
Number of Positions:	12
Positions Per Level:	12
Number of Levels:	1
Pitch:	0.197" (5.00mm)
Header Orientation:	-
Plug Wire Entry:	90°
Termination Style:	Screw - Rising Cage Clamp
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	10 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	12-26 AWG
Wire Gauge or Range - mm²:	-
Color:	Green
Operating Temperature:	-40°C ~ 105°C
Contact Mating Finish:	Tin
Features:	Mating Flange, Retention Latches (Wire Side)

Molex 0395278012
