Molex 0395238007

Manufacturer No:
0395238007
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0395238007 Datasheet
ECAD Model:
-
Description:

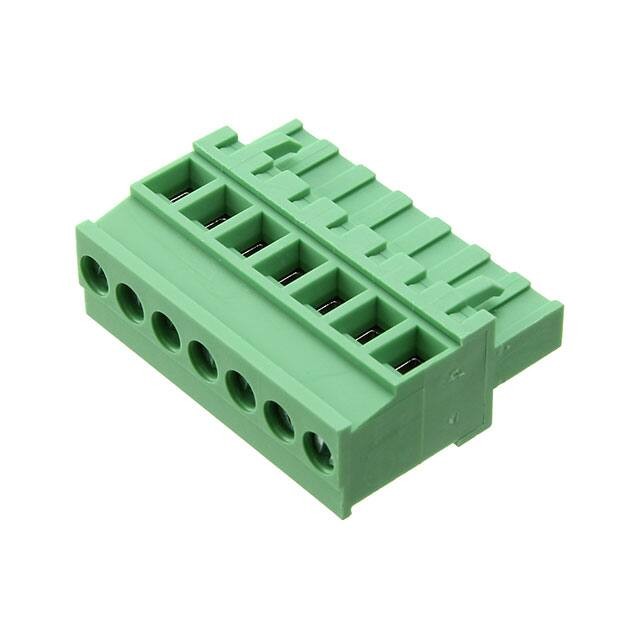

TERM BLOCK PLUG 7POS 90DEG 5MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Plug, Female Sockets
Number of Positions:7
Positions Per Level:7
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:-
Plug Wire Entry:90°
Termination Style:Screw - Rising Cage Clamp
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:12-26 AWG
Wire Gauge or Range - mm²:-
Color:Green
Operating Temperature:-40°C ~ 105°C
Contact Mating Finish:Tin
Features:Retention Latches (Wire Side)
0 Remaining View Similar

In Stock

$6.35
67
