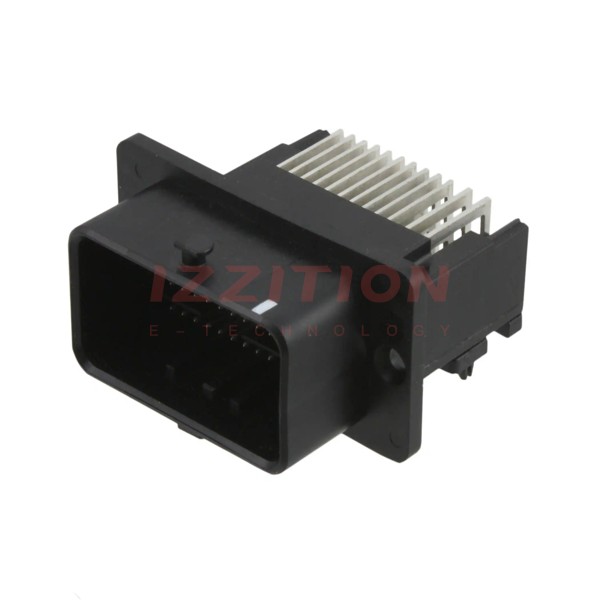

Molex-0366380002 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	48
Number of Rows:	4
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Board Edge, Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	1.205" (30.61mm)
Contact Shape:	-
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	157.5µin (4.00µm)
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Board Lock, Mounting Flange
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0366380002
