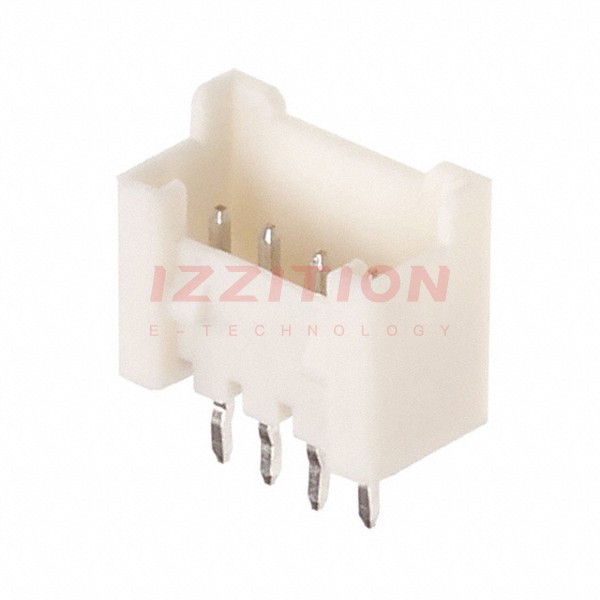

Molex 0353620410

Manufacturer No:
0353620410
Manufacturer:
Molex
Package:
Bulk
Datasheet:
0353620410 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 4POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:0.145" (3.70mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Tin-Lead
Contact Finish Thickness - Mating:78.7µin (2.00µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):-
Voltage Rating:125V
0 Remaining View Similar

In Stock

-
583

Please send RFQ , we will respond immediately.
