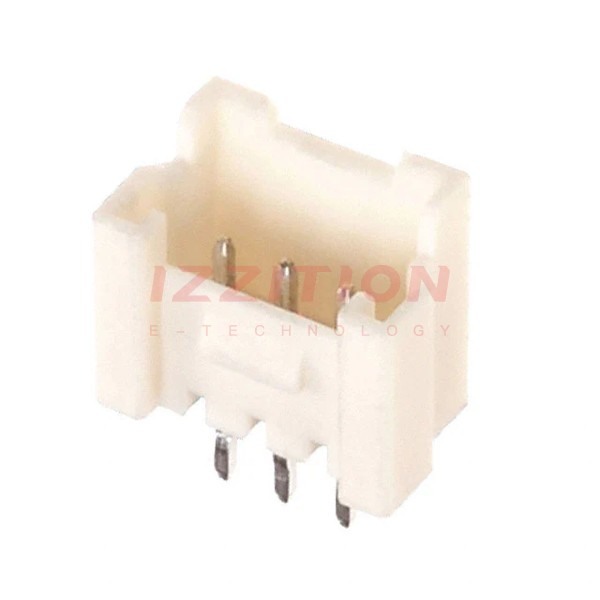

Molex-0353620310 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	3
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Kinked Pin, Solder
Fastening Type:	Locking Ramp
Contact Length - Mating:	0.145" (3.70mm)
Contact Length - Post:	0.130" (3.30mm)
Overall Contact Length:	-
Insulation Height:	0.335" (8.51mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	78.7µin (2.00µm)
Contact Finish - Post:	Tin-Lead
Contact Material:	Brass
Insulation Material:	Polyamide (PA66), Nylon 6/6
Features:	-
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Natural
Current Rating (Amps):	-
Voltage Rating:	125V

Molex 0353620310
