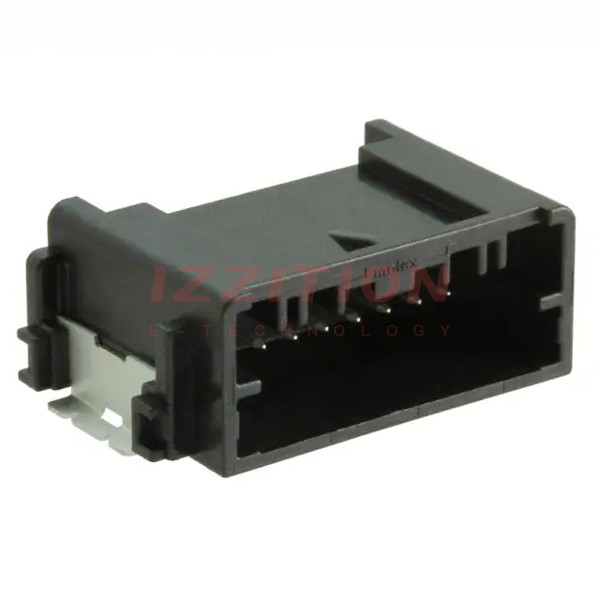

Molex 0349126080

Manufacturer No:
0349126080
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0349126080 Datasheet
ECAD Model:
-
Description:
CONN HEADER SMD R/A 8POS 2MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.079" (2.00mm)
Number of Positions:8
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.218" (5.55mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.372" (9.44mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Solder Retention
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$4.08
201

Please send RFQ , we will respond immediately.
