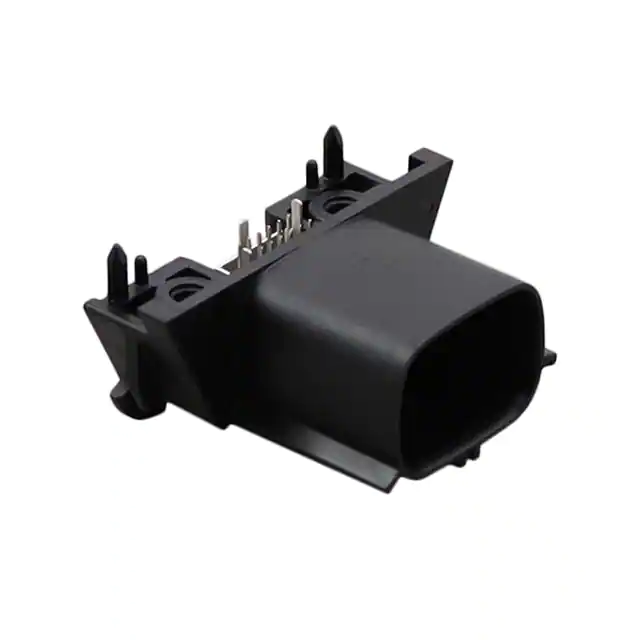

Molex 0348570506

Manufacturer No:
0348570506
Manufacturer:
Molex
Package:
Tray
Datasheet:
0348570506 Datasheet
ECAD Model:
-
Description:
CONN HDR 12P 0.05 GOLD EDGE MNT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Female Socket
Style:Board to Cable/Wire
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:16.0µin (0.41µm)
Insulation Color:Black
Insulation Height:0.453" (11.50mm)
Contact Length - Post:-
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:-
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Guide, Sealed
Current Rating (Amps):1.5A
Voltage Rating:36V
0 Remaining View Similar

In Stock

$10.49
44

Please send RFQ , we will respond immediately.
