0348268204
  • Share:

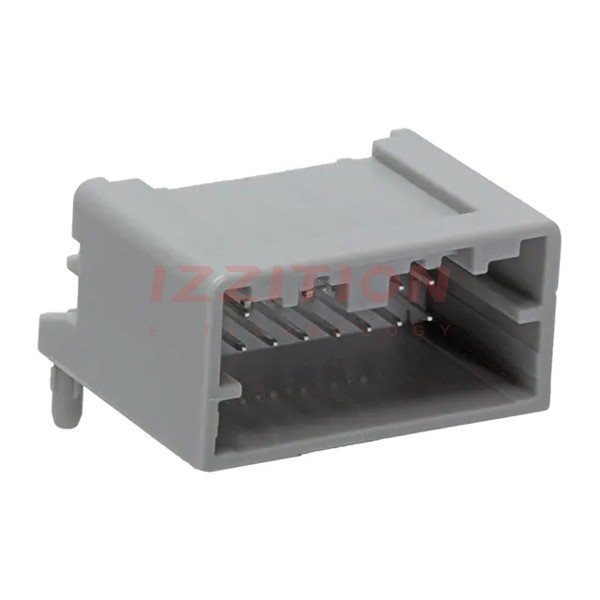

Molex 0348268204

Manufacturer No:
0348268204
Manufacturer:
Molex
Package:
Tape & Reel (TR)
Datasheet:
0348268204 Datasheet
ECAD Model:
-
Description:
MINI50 RA DR HDR-20CKT PO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.219" (5.56mm)
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.460" (11.68mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 100°C
Ingress Protection:-
Material Flammability Rating:UL94 HB
Insulation Color:Black
Current Rating (Amps):4A per Contact
Voltage Rating:14V
0 Remaining View Similar

In Stock

$2.70
342

Please send RFQ , we will respond immediately.
