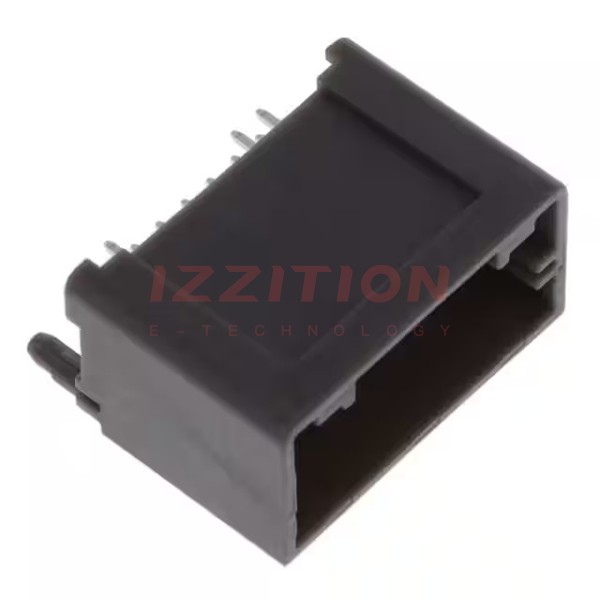

Molex-0348250126 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	12
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	0.218" (5.55mm)
Contact Length - Post:	0.113" (2.87mm)
Overall Contact Length:	-
Insulation Height:	0.614" (15.60mm)
Contact Shape:	Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Board Guide, Solder Retention
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-

Molex 0348250126
