Molex-0347920041 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade
Pitch - Mating:	0.079" (2.00mm)
Number of Positions:	4
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Lock
Contact Length - Mating:	0.218" (5.55mm)
Contact Length - Post:	0.051" (1.30mm)
Overall Contact Length:	-
Insulation Height:	0.575" (14.60mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Brass
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Board Guide
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Gray
Current Rating (Amps):	-
Voltage Rating:	-

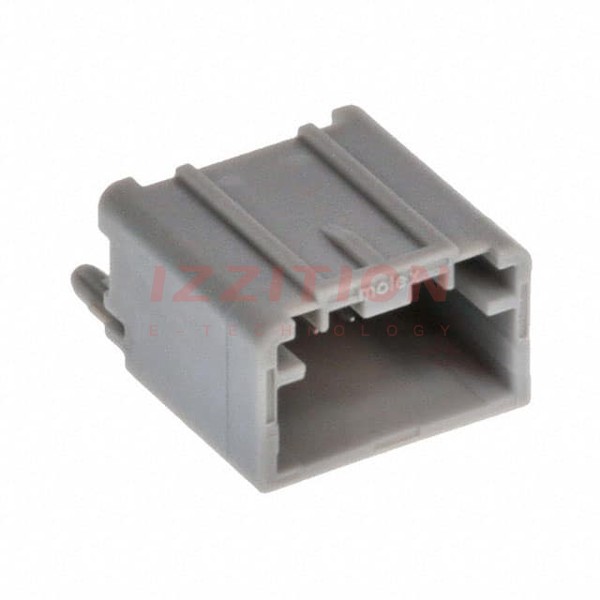

Molex 0347920041
