Molex-0347720140 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Connector Type:	Header
Contact Type:	Male Blade; Male Pin
Pitch - Mating:	-
Number of Positions:	14 (10 + 4 Power)
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.117" (2.97mm)
Overall Contact Length:	-
Insulation Height:	1.104" (28.04mm)
Contact Shape:	Rectangular, Square
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	Syndiotactic Polystyrene (SPS), Glass Filled
Features:	Board Guide
Operating Temperature:	-40°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	500V

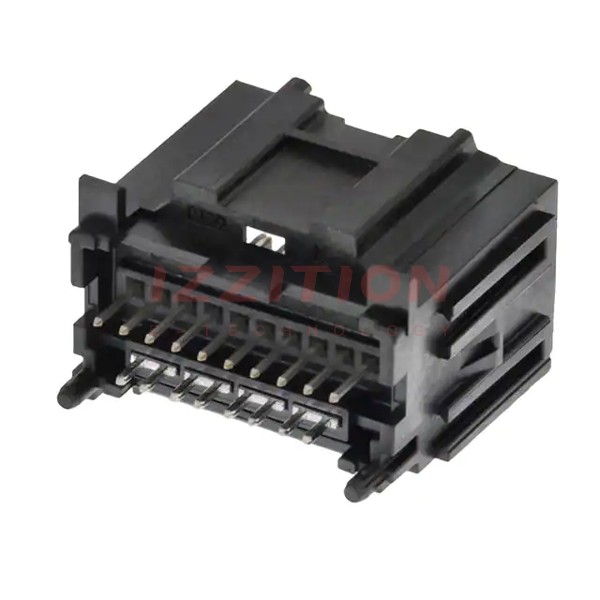

Molex 0347720140
