0346916203
  • Share:

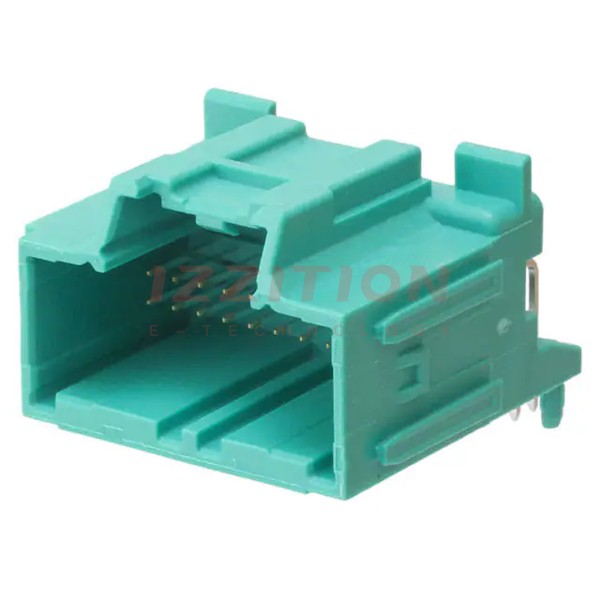

Molex 0346916203

Manufacturer No:
0346916203
Manufacturer:
Molex
Package:
Tray
Datasheet:
0346916203 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 20POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.119" (3.02mm)
Overall Contact Length:-
Insulation Height:0.868" (22.05mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Cartridge Brass
Insulation Material:Syndiotactic Polystyrene (SPS), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Green
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$4.14
229

Please send RFQ , we will respond immediately.
